Proprium Ball Reprehendo Valvae-Flanged Type Provisores, OEM/ODM Officina

product product product product product product product product product product product product

reprehendo Valvae

Home / Products / Manual Valve / reprehendo Valvae / Ball Reprehendo Valvae-Flanged Type

PREV：Ball Reprehendo Valvae Unionis Type DEINDE：Azymum Reprehendo Valvae

Partes & Materials
Demensiones& Specificationes
Descriptio
Optiones
FAQ
Contactus Us

Nec.

Partes

Materiae

Interiorem plug

FRPP，

PPH，UPVC，

CPVC，

PVDF

Corpus

FRPP，

PPH，UPVC，

CPVC，

PVDF

Ball

PTFE，

PPG，UPVC，

CPVC，

PVDF

Sigillum

PTFE，

EPDM，FPM

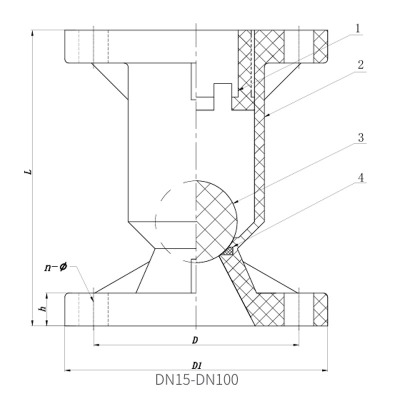

Dimensiones Tablemm）

DN	D1 （mm）	D（mm）			L（mm）	h（mm）	n			φ（mm）			Mpa） opus press	Mpa） Minimum tergum pressura
		DIN	JIS	ANSI			HG/DIN	JIS	ANSI	HG/DIN	JIS	ANSI
15	95	65	70	60	100	15	4	4	4	14	15	16	1.0	0.1

20	105	75	75	70	120	17	4	4	4	14	15	16	1.0	0.1
25	115	85	90	79	140	17	4	4	4	14	15	16	1.0	0.1
32	135	100	100	89	160	17	4	4	4	18	19	16	1.0	0.1
40	145	110	105	98	165	17	4	4	4	18	19	16	1.0	0.1
50	160	125	120	121	180	20	4	4	4	18	19	19	1.0	0.1
65	180	145	140	140	220	22	4	4	4	18	19	19	0.6	0.1
80	195	160	150	152	250	25	8	8	4*	18	19	19	0.6	0.1
100	215	180	175	190	280	25	8	8	8	18	19	19	0.6	0.1
125	245	210	210	216	325	30	8	8	8	18	19	22	0.4	0.1
150	280	240	240	241	365	30	8	8	8	22	23	22	0.4	0.1
200	335	295	290	298	405	35	8	12*	8	22	23	22	0.3	0.1
250	400	350	355	362	500	38	12	12	12	22	25	26	0.3	0.1
300	455	400	400	432	600	40	12	16*	12	22	25	26	0.3	0.1

Our Main Productums

Cur Us?

Ningbo Baodi Plastic Valve Co., Ltd.

Ningbo Baodi Plastic Valve Co., Ltd. traces its origins back to 1979 and is recognized as one of the earliest enterprises in China to design and produce industrial plastic valves, having received acceptance from the Ministry of Chemical Industry.
Over the past 47 years since its founding, the company is China Ball Reprehendo Valvae-Flanged Type Manufacturers and Custom Ball Reprehendo Valvae-Flanged Type Suppliers, and has designed and manufactured a wide range of plastic valves for the most demanding industries. It has served tens of thousands of enterprises both domestically and internationally, with exports to more than 60 countries, consistently remaining a leading manufacturer of industrial thermoplastic valves and piping systems. Our professional service and stable quality have always been highly recognized and appreciated by customers worldwide.
