Tutela et periculum imperium valvulae manuales statice in systematibus industrialibus

Quae sunt genera valvularum manualium communia?

Valvulae manuales are the most common type of valves in industrial fluid control systems and are widely used in petroleum, chemical, electric power, metallurgy, water treatment, papermaking, pharmaceutical, food and other industries. Manual valves use manual operating handles, handwheels, sprockets and other mechanical devices to open and close or adjust the flow of media. It has a simple structure, is easy to use, economical and reliable, and is an indispensable component in industrial pipeline systems. According to the different structural forms, working principles and applicable occasions, manual valves can be mainly divided into the following common types:
Valvae portae manuales
The manual gate valve realizes the on-off control of the fluid by moving the wedge-shaped or parallel gate up and down. The contact area between the gate and the valve seat is large during opening and closing, which is suitable for full opening or full closing occasions, but not suitable for frequent opening and closing or throttling. The manual gate valve has the advantages of low fluid resistance, good sealing performance, simple structure and long service life. It is widely used in oil pipelines, water treatment, power station systems and other working conditions with high sealing requirements.

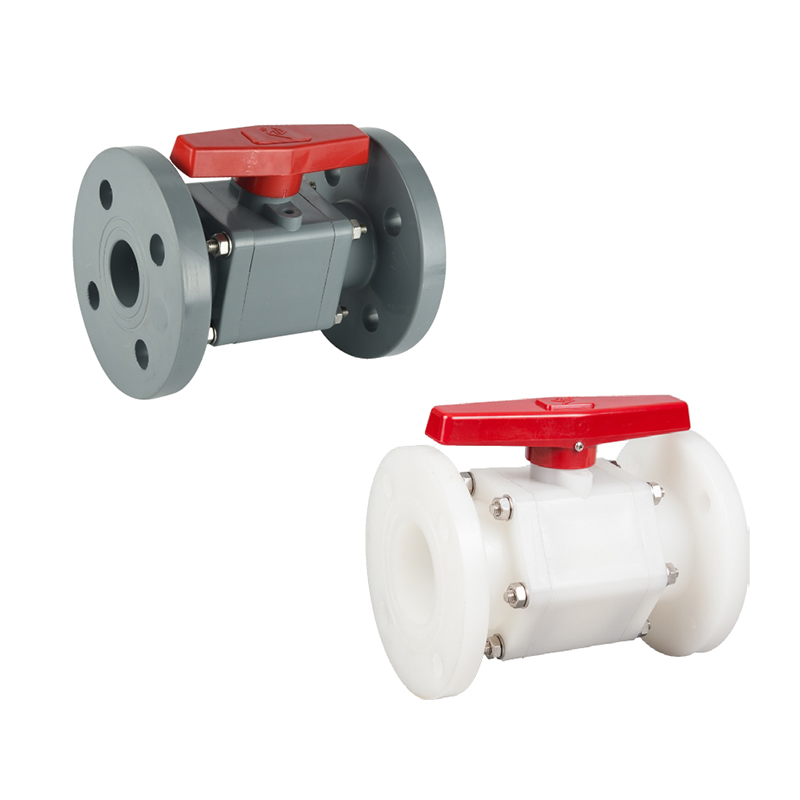

Valvae pila manualis
The manual ball valve uses the ball to rotate 90° around the valve axis to control the flow of the medium. The ball valve opens and closes quickly, has a small operating torque, and has excellent sealing performance. Maxime apta est ad systemata quae celeriter aperiuntur et claudunt et operationem frequentem requirunt. It is suitable for clean liquids, gases and corrosive media. It is widely used in petrochemical, natural gas, pharmaceutical, papermaking and other industries. Its compact structure is particularly suitable for installation in limited spaces.
Manual subsisto valvae
Valvae sistendi manualem ratem fluxum adaptat movendo discum valvae in directione verticali circa centrum lineae valvae sedis. Cum valvae portae, valvae sistenda melius temperatio effectus habet, sed fluida resistentia relative magna est. The stop valve is suitable for occasions where precise control of flow or pressure is required, such as boiler equipment, steam systems, chemical processes, etc. The stop valve has a simple structure and is easy to maintain, and is often used in small and medium-sized pipelines.
Manual papilio valvae
Valvae papilionis manualis utitur laminam valvulam disco informatam ad axem valvulam circumactum ad aperiendum et claudendum medium alveum. Habet structuram compactam, levem pondus et sumptus parvos, et aptissima moderatione valvularum magnarum diametrorum. It is commonly used in water treatment, air conditioning systems, fire protection pipelines, food and beverage industries. Etsi signatio effectus non tam bona est quam valvulae pilae et valvulae portae, commoda conspicua habet in spatio ac pondere occasiones sensitivas. Improved products such as bidirectional seals and eccentric butterfly valves can effectively increase its application range.
Manual obturaculum valvae
Aperti et claudendi partes valvae obturaculi manuales sunt plugae conicae vel cylindricae, quae rotatione aperiuntur et clauduntur. Its flow channel is usually straight-through with low fluid resistance. The structure is simple and suitable for frequent opening and closing. Late usus est in abusione agri olei, transmissione gasi, reticulis urbanis et aliis agris. Since plug valves are prone to wear, modern plug valves often use lubrication or soft sealing structures to improve service life and sealing performance.

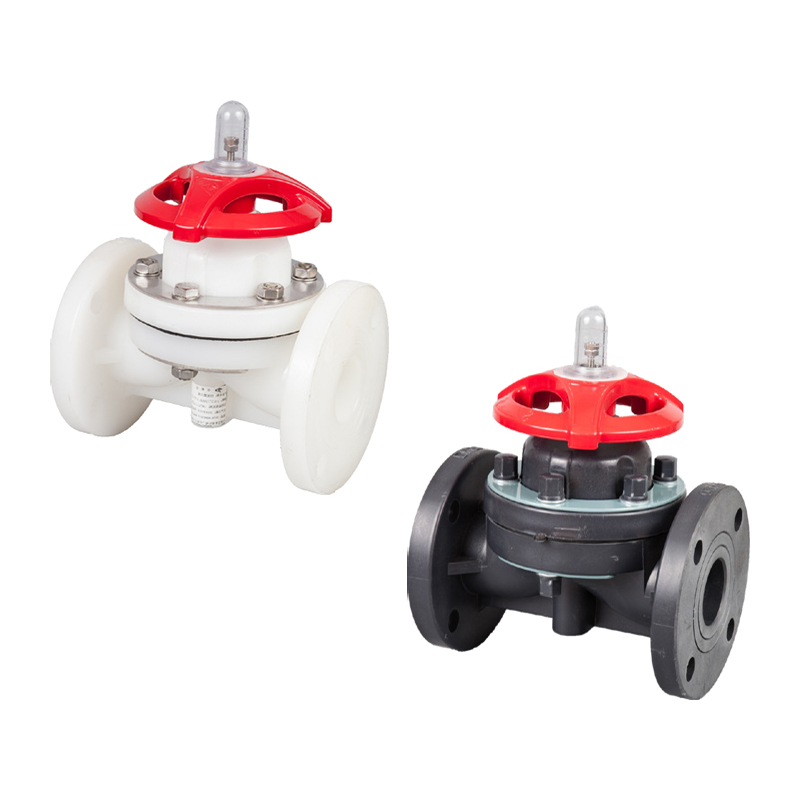

Diaphragma valvae manualis
The manual diaphragma valvae uses a flexible diaphragm as an opening and closing part, which is suitable for controlling pipeline systems containing solid particles, corrosive media or viscous fluids. Its biggest advantage is that there is no metal part in contact with the medium, avoiding corrosion and pollution problems. It is suitable for high-clean process flows such as pharmaceuticals, food, and biochemicals, and is widely used in CIP/SIP systems. Ob peculiarem eius structuram, opportunum est saeptum reficere ac reponere.

Valvae acus manualis
The needle valve uses a slender conical valve core to accurately control small flows. Maxime adhibenda est moderatio fluidi subtilitatis altae, ut systemata instrumentationis, systemata sampling, hydraulica vel pneumatica gyrationis moderatio. Compacta structura, alta accuratio moderatio, late usus in investigationibus scientificis, laboratorio et machinis gas pressuris.
Manual reprehendo valvae
Etsi valvulae retentae automatice laborare solent, nonnullae systemata valvulae cum functionibus manualibus utuntur. Solebant impedire medium regressum et interventus manuales in specialibus circumstantiis permittere. Communiter usus est in occasionibus summus salutis, ut summus pressura boilers, statio flantium, piscinarum chemicarum repositionis, etc.

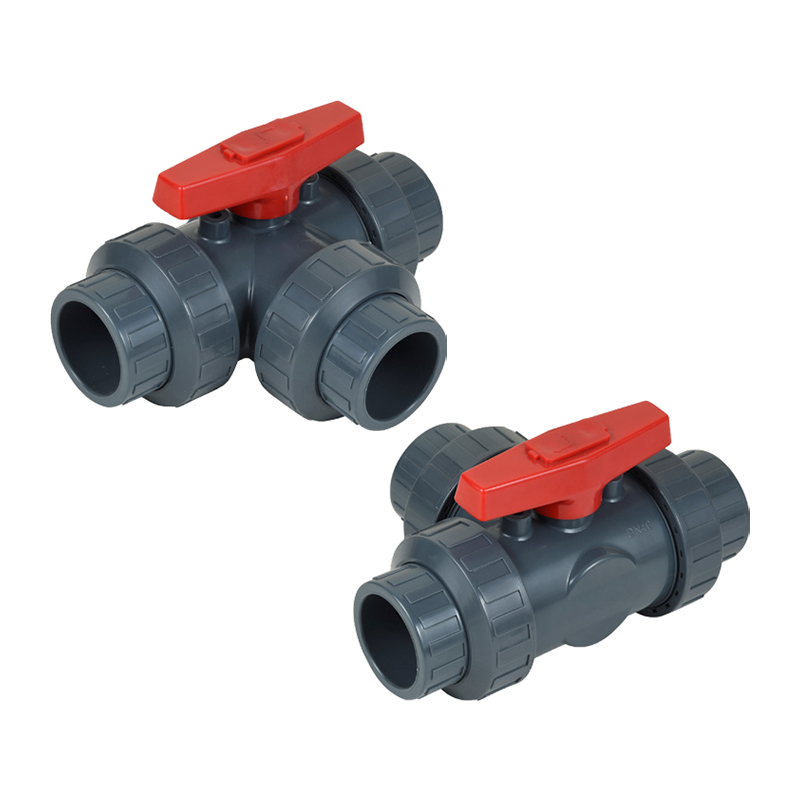

Manual tres-modo valvae
Tres-modo valvulae manuales dividi possunt in structuras "T-type" et "L-type", aptas ad directionem fluidi mutandam vel multifariam mutandi intellegens. Plerumque usus est in miscendis, differentiis vel praeteritis systematibus, et late in HVAC, cibi processui et in commutatione pipelino adhibetur. Flexibilis operatio, diversa structura, cum valvis pila, valvulis obturaculis aliisque consiliorum formis componi potest.

Quid interest inter valvulas pila manuales et valvulas portae manuales in structura et methodo signandi?

Valvulae pilae manuales et valvulae portae manuales sunt duae valvulae pipelines abscissae communes, late in systematibus industrialibus utuntur sicut petroleum, chemica, metallurgia, vis electrica, et constructio. Although both of them play the role of opening and closing fluids and cutting off passages in terms of function, there are essential differences in their structural design, sealing principle, performance and applicable scenarios.
Distinctiones structurales design
Corus structuralis valvae pilae manualis est sphaera concava, quae interdum medii moderatur sphaeram circumagens. The sphere is usually a solid metal ball with a hole, which is axially connected to the valve stem. The ball valve is usually a quarter-turn structure, and it only needs to rotate 90° to switch from full open to full closed. Valvae corporis compages plerumque est duae partes vel tres partes, quae ad sustentationem et subrogationem partium internarum apta est. Sphaerae superficies praecise machinatur et cooperatur cum tribunali obsignationis ad par obsignandum. Structura altiore compacta et levis est, quae facile est in locis angustiis spatium instituere.
The main structural components of the manual gate valve are wedge-shaped or parallel gates, which are opened and closed by vertically lifting the gate up and down. The gate rises and falls along the spiral motion of the valve stem, usually a multi-turn structure, and the opening and closing process is relatively slow. Porta valvae corporis est fere integra iactio cum cavitate profunda interna et magnis dimensionibus structuralibus. Since the gate needs to be fully raised to the top of the valve cavity to fully open, the manual gate valve has higher requirements for space and operating torque than the ball valve.
Differentia signandi modum
In pila manuali valvae faciei structuram obsignandi adhibet. The sealing pair is formed by the contact between the surface of the ball and the sealing seat, which is usually made of polytetrafluoroethylene (PTFE), reinforced polymer, metal or composite material. The ball always keeps in contact with the sealing surface during rotation, and effective sealing is achieved through the floating ball or fixed ball design. Globus valvae egregiam habet obsignationem observantiae et infimae quantitatis lacus, quae aptissima est ad condiciones operandas cum maximis requisitis pro ultrices nulla. Valvulae pilae quidam summus finis etiam duos modos habent signandi et fireproof et structuras anti-staticas ad meliorem systematis salutem.
Valvae portae manualis adoptat structuram obsignandi filum. Geminatio signatio formatur ad margines utrimque portae et obsignationem superficiei valvae sedis. The sealing surface is mostly made of metal materials such as alloy steel, hard alloy, and Stellite. Sigillum pendet ex cooperatione mediae pressionis et cunei vis tensis portae, et effectus signandi non tam bonus est quam globulus valvae pressae condiciones pressae. Ob frictionem validam inter portam et sedem valvae in processu aperiendo et claudendo, facile est deferre, et accurate processus et conventus exigentias altae sunt. Some gate valves use elastic gates or pressure self-sealing structures to enhance sealing, but their overall sealing performance is still slightly inferior to that of ball valves.
Varietas in aperiendo et claudendo perficiendi
Globus valvae manualis cito aperit et claudit, torquem humilem habet et facile ad operandum est. Its rotation angle is only 90°, which is suitable for systems that are frequently operated or require rapid medium cutoff. Nulla frictio est in processu aperiendi et claudendi, et actio stabilis est, quae aptior est occasionibus quae subitis shutdown requirunt.
Valvula manualis porta tardius aperit et claudit, et manus pluries rotari debet ad totam operationem perficiendam. Due to the long up and down movement of the gate, coupled with the mechanical loss of the valve stem thread transmission mechanism, the operation process is time-consuming and laborious. Non convenit ad crebras aperitiones et claudendas, sed certas longi temporis facultates obsignandi in magna-diametro, humili frequentia systematis pipelinis habet.
Varietas harum applicationis
Valvae pila manualis apta est systematibus pipelineis quae ieiunium aperiendi et claudendi requirunt, signationem bonam et resistentiam humilis fluxus. It is particularly suitable for industries with strict leakage control such as natural gas, refined oil, fine chemicals, pharmaceuticals, and water treatment. Habet structuram compactam et institutionem flexibilem, aptaque ad apparatum vel fistulam ramorum cum spatio stricto.
Manual gate valves are suitable for trunk pipelines with large diameters, low frequency operations, and small pressure changes. They are widely used in the main valve position of water plants, heating, electricity, metallurgy and other systems, and are especially suitable for use as cut-off devices. Resistentia eius fluxus est valde humilis, et nulla fere pressio in statu plene aperto est, qui tempori spatio systemata transmissioni amicior est.
Fluunt facultatem et pressura damnum
Canale intra globum valvae pilae manualis saepe cum consilio plenae boreali designatur. Medium fere nullam habet resistentiam fluere per valvulam transeuntem, et nulla pressionis aperta gutta generatur. Habet parvam ictum in efficientiam systematis et apta est ad processum transmissionis efficientem requirendo.
Valvulae portae manuales etiam parvum fluxum resistentiae habent in statu plene aperto, sed prona sunt ad turbidum et vibrationem quando partim vel incomplete aperiuntur. Cum valvulae pilae comparatae, structurae locales eorum magis verisimile sunt medium exesum causare, quod vicissim vitam superficiei signationis afficit.

How to choose manual valves for the food or pharmaceutical industry

In cibo et industriis pharmaceuticis, valvae manuales non solum munera fundamentalia aperiendi, claudendi, ordinandi et incidendi habent, sed etiam ad salutem productam, ad munditiem et ad productionem obsequii referuntur. Cum hae industriae altissimas requiruntur ad hygienam, materias et anti-pollutionis facultates, electio stricte sequi debet signa industriae pertinentes et plene considerare factores quales sunt notae mediae, processus fluunt, purgatio et disinfection ratio, ac valvae structurae materias.
Constitutio structuralis obvia hygienic signa
Cibus et industriae pharmaceuticae altissimas requiruntur ad munditiam apparatuum superficierum. Valvulae manuales habere debent proprietates quales non sunt anguli mortui, nulla retentio, et facilis purgatio. Cum selectis, valvae productis occurrentibus certificationes hygienicas sicut EHEDG (European Hygienic Engineering Design Group), 3-A (American Lacticiniis Hygiene Consociationis Signa), et FDA (American Food et Drug Administration) praeponenda sunt. Cavitas valvae plenae consilio adhibendae sunt ut medium sine retentione aequaliter fluat; superficies interna electrolytice poliatur, et asperitas intra Ra ≤ 0.4 µm coerceatur ne adhaesio bacterial.
Electio materiae valvae corporis et materiae signantes
Materia lectio directe afficit corrosionem resistentiam, caliditatem resistentiam, et biocompatibilitatem valvae. Cibus et industriae pharmaceuticae commendant usum 316L ferro immaculati, ut materia principalis valvae corporis ob eximiam corrosionem resistentiae et weldabilitatis, eiusque facultatem resistendi acidum, alcali et temperaturae vaporis ambitus vulgo in CIP (Clean-in-Place) et SIP (Sterilize-in-Place) systemata. Sigilla facienda sunt ex FDA certificato cibo-gradu polytetrafluoroethylene (PTFE), EPDM (propylene diene monomerorum ethylene iuvantis) vel FKM (fluororubber) et aliarum materiarum cum bono resistentiae et caloris chemicae resistentia ut medium non contaminaretur.
Securus CIP/SORBUM purgatio et sterilizatio
In cibo et medicina productione, ratio limbis regulariter purgari debet et in loco (CIP) et vapor sterilis in loco (HAUSTUS). Valvae structurae congruere debet cum hoc genere purgationis. Cum excerpendo, vide num valvae cavitas munus exinanitionis latae habeat, num residuum liberam purgationem consequi possit, an sigillum caliditatis resistentiae (≥150°C) habeat, et an valvae sterilizationis cycli tempus sustineat (plerumque plus quam 30 minuta debet esse). Structurae valvularum trium viarum, diaphragmatis valvularum et asepticorum valvularum samplicationis optimiatae sunt et ad huiusmodi processum aptiores sunt.
Maluit valvae sanitariae species sicut valvulae diaphragmatis et valvulae papilionis
Valvulae diaphragmatis late in locis adhibitis magna munditia requiruntur, quia eorum media tantum intimam cavitatem corporis valvae et diaphragmatis materiam attingunt. Eius structura simplex est et nulla est retentio area in cavitate valvae, quae aptissima est ad vehementem viscositatem, particulas solidas vel ad instrumenta corrosiva deportanda. Valvulae papilio notas habent structurae compactae, ponderis leve, et aperturae celeris et claudendi. Saepe adhibentur condiciones suppressae vel altae in fluxu, praesertim ad impletionem, filtrationem et translationem. Valvulae sanitariae papilionum solent esse instructae nexus fibularum vivorum-remissionum, quae facile sunt ad disiungendum, mundum et ad locum obtinendum, et ad GMP specificationum convenientes.
Connection modum occurreret sanitate requisita
Connexio methodi valvularum manualium directe ad sanitariam obsignandi observantiam refertur. Modi connexionis sanitariae tales ut fibulae typus, glutino generis vel generis LABIUM praeponi debent. Fibulae genus connexionis cito disiungi et congregari possunt, apto instrumento quod saepe purgatur; connexio glutino typus habet bonam structuram firmitatem et signationem, opportunis occasionibus ad conventum permanentem; Connexio generis LABIUM in magnis systematibus plerumque adhibetur, sed sanitate flange structuram obsignandi eligenda est. Neglegens methodus, superficies signandi debet subtilitatem et superficiem processus processus tenere ad incrementum microbialium vitandum.
Anti- miscere et batch imperium
Multiplices et parvae processus productionis in cibo et industriarum pharmaceuticis maiorem fidem in valvae mutandi et signandi requirunt. Structurae ut valvulae duplicis sedis vel valvulae anti-mixtae seligantur ad impediendam contaminationem crucis inter batches. Plectrum metallum debet habere modum positionis functionis ad impediendum residuum vel mixtionem propter misoperationem; simul, processum parametri supportare debet ut occurrat GMP traceability requisita.
Obsequio GMP et sanatio requisita
Secundum exigentias Boni Vestibulum Practice (GMP) ad productionem pharmaceuticam, apparatum boni verifiability et constantiam habere debet. Electa valvae manualis debent habere documenta convalidatio, inter materialia certificationem, signationem materialium testium famam, pressionem testium fama, asperitatem certificationem, institutionem delineatas, etc. Eodem tempore fabrica opus est ad IQ (confirmatio institutionis)/OQ (confirmatio operationis)/PQ (confirmatio perficiendi), documentum subsidium ad qualitatem administrationis systematis recensendum.
Corrosio resistentiae et servitii vitae taxatio
Instrumenta communia in victus industria, ut sunt lacticiniis, succo, soy liquamine, alcohol, quaedam acorem et alcalinitatem habent; in industria pharmaceutica, ut ethanolum, hydrogenium peroxidum, et acidum disinfectantes valde mordax sunt. Plectrum structuram diuturnum exesum sustinere debet ab agentibus purgandis et regentibus chemicis dum vitam servitii procurant. Est rec
